180 degrees dislocation
Six, installation inspection
The two ring and a ring are orderly arranged, 180 degrees dislocation. Oil, compression ring installation position of fig..
Seven, check again after the installation of piston ring ring groove is installed in the provisions of the provisions of the piston ring, order and position etc..

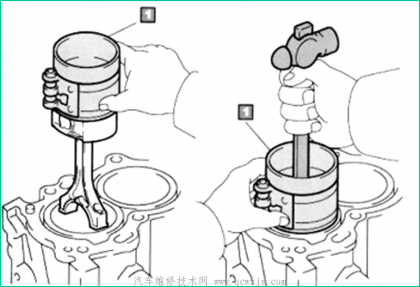

Eight, the piston into the cylinder
The piston ring piston into the cylinder will be assembled, all to be good in the cylinder, piston, piston ring coating of engine oil, and then will be fully closed to the diameter of cylinder piston ring, the piston into the cylinder.
Nine, the piston ring is removed from the ring groove
Remove the piston ring, if you intend to reuse, and it should be the same when installed, remove with piston ring tool, and careful operation. If the piston ring is bonded to the ring groove and removed before, be very careful to make the piston ring to avoid damage when removing free activities.
Save ten, piston ring
The piston ring is made of precision machining, because its shape is easy to change, should be kept flat, avoid placing the unstable state.
