Diesel Engines Starter Motors Brushes

Before any serious work can be done, the starter must be removed from the engine, degreased, and placed on a clean bench. Disconnect one or both cables at the battery to prevent sparking; disconnect the cable to the solenoid and the other leads that might be present (noting their position for assembly later); and remove the starter from the flywheel housing. Starters are mounted with a pair of cap screws or studs.

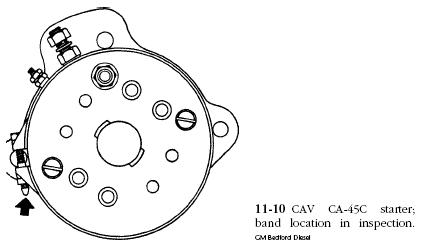

Remove the brush cover, observing the position of the screw or snap, because wrong assembly can short the main cable or solenoid wire (Fig. 11-10). Hitachi starters do not have an inspection band as such. The end plate must be removed for access to the brushes and commutator.
